Description

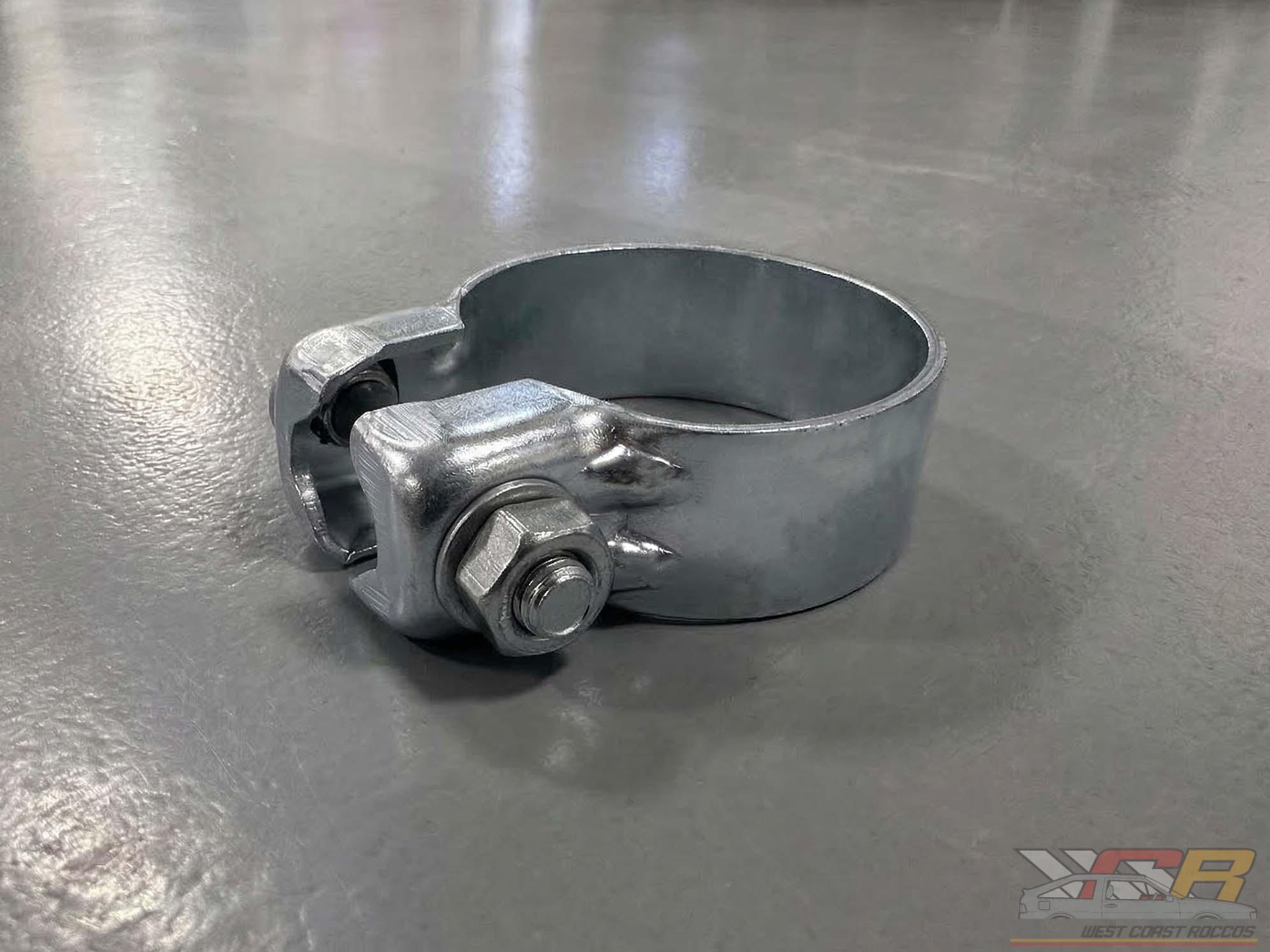

16v Exhaust Clamp
Our OES Scirocco 16v Exhaust Clamp are for 16v exhaust only. 2.25″ pipe. Requires two per car. Made in Germany. Zinc plated. Comes with clamps and hardware, ready to install.
Part Number: 1H0253139D / 1H0 253 139 D
The 16v Exhaust Clamp outperforms the standard automotive hardware you find at local parts stores. Volkswagen specifically engineered this heavy-duty spring steel component for the high-pressure “ball and socket” (or “toilet bowl”) joint. This critical hardware secures the connection between the exhaust manifold and the downpipe on classic Mk2 Scirocco and Golf/Jetta 16v models. Because this joint pivots as the engine rocks under torque, these clamps must maintain immense, constant tension while simultaneously enduring extreme thermal expansion and contraction. For example, this specialized design ensures a reliable seal for the unique exhaust manifold configuration of Volkswagen 16-valve engines.
Product Details and Function
-
Application: These tension clamps hold the exhaust downpipe to the manifold flange.
-
Design: Specifically engineered for the 16v exhaust system, which requires high-tension clamping to prevent exhaust leaks at the pivot point of the downpipe.
-
Durability: Typically manufactured from high-strength spring steel to withstand the extreme heat and constant vibration of the exhaust system.
-

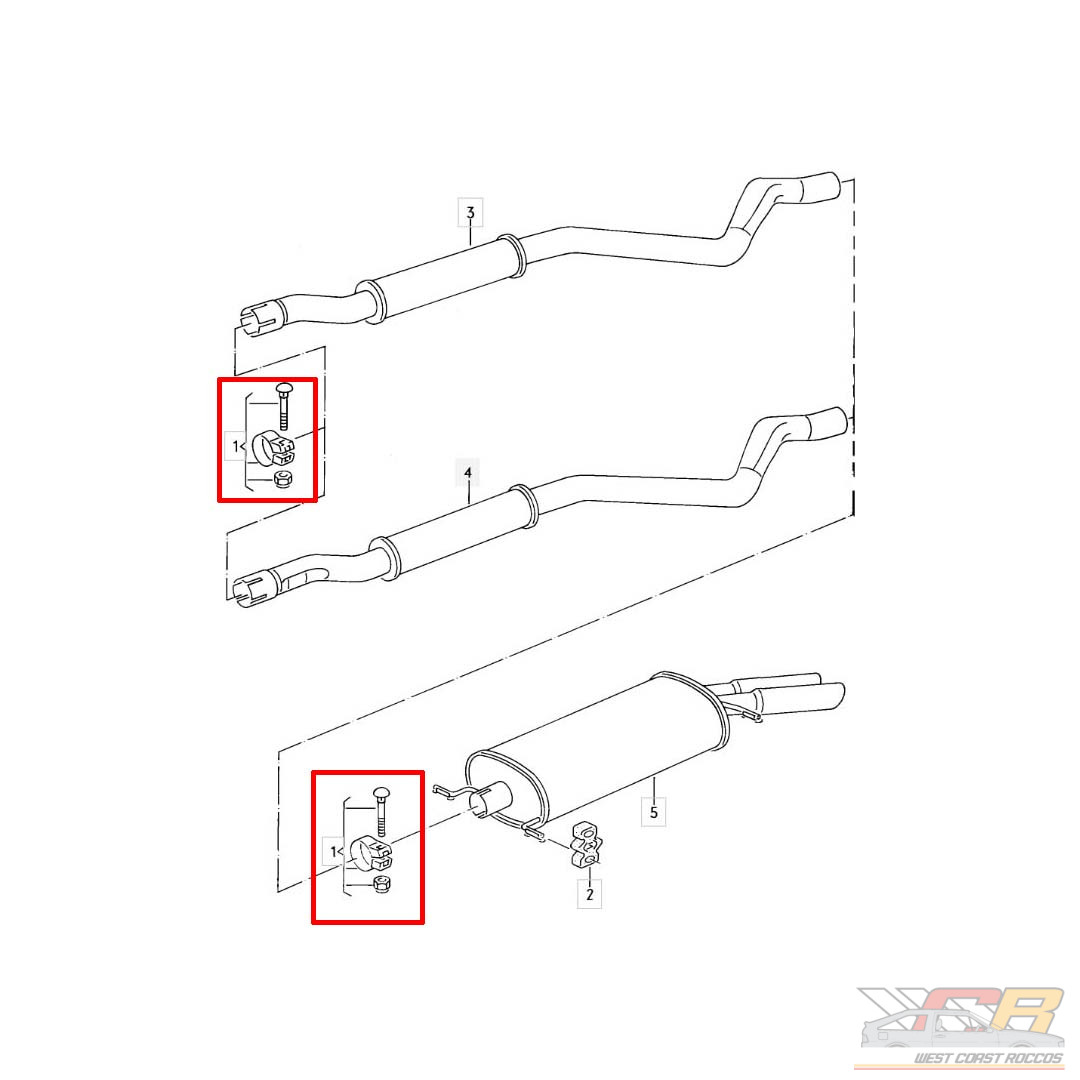

Quantity Note: Sold individually, but most 16v exhaust systems require two clamps (one for each side of the manifold-to-downpipe connection) for a complete installation.
16v Exhaust Clamp Supported Vehicle Fitment
-
Scirocco Mk2: Fits 1986.5–1988 16v models.
-
Golf/GTI Mk2: Compatible with 16v variants.
-
Jetta Mk2: Fits 16v GLI models.
Why Quality Clamps Matter
Using original-specification 16v clamps is vital because:
-
Leak Prevention: Proper tension ensures the downpipe gasket seats correctly, preventing toxic fumes from entering the cabin.
-
Noise Reduction: Loose downpipe connections are a common source of “ticking” or rasping noises in the engine bay.
-
Component Longevity: Correct clamping prevents the downpipe from vibrating excessively, which can eventually lead to manifold cracks or stud failure.
Essential Performance & Safety
-
Sealing the System: Without the proper tension provided by these specific 16v clamps, unmetered exhaust gases can escape right at the firewall, often leading to a distinct “ticking” sound and allowing dangerous carbon monoxide to enter the cabin through the fresh air intake.
-
Vibration Control: These clamps act as a mechanical buffer; if they become heat-cycled and lose their “spring,” the downpipe will vibrate loosely, which quickly leads to the failure of the expensive donut gasket or, in worst-case scenarios, cracked exhaust manifold studs.
-
Restoration Quality: For a true enthusiast build, using the correct high-tension spring clamps is the only way to ensure the drivetrain remains quiet and the exhaust system stays tucked in its factory position.
Professional Installation Tip
These clamps are notoriously difficult to install by hand due to their incredible spring rate. A C-Clamp Spreader Tool highly recommended with install. Additionally, this will open the clamp wide enough to slip over the manifold and downpipe flanges. In conclusion, attempting to pry them on with screwdrivers often results in bent flanges or personal injury.
