Scirocco Tech Specs, Resources, & Manuals
To effectively diagnose issues with your Volkswagen Scirocco using Scirocco Tech Specs, you first need to understand the layout and components of your car. Start by accessing the owner’s manual, which typically includes detailed diagrams of various systems within the vehicle. Locate the section that pertains to the particular issue you’re experiencing.
Scirocco Factory Maintenance Schedule
7,500 miles -> thru -> 120,000 miles

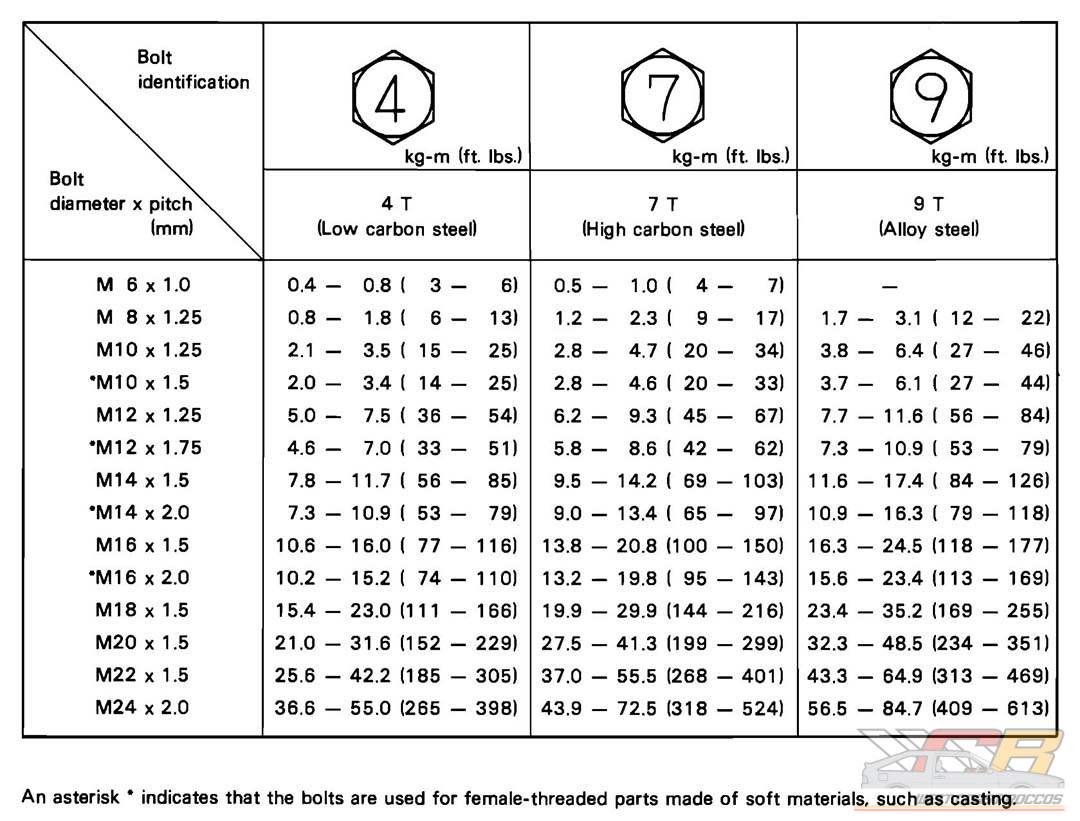

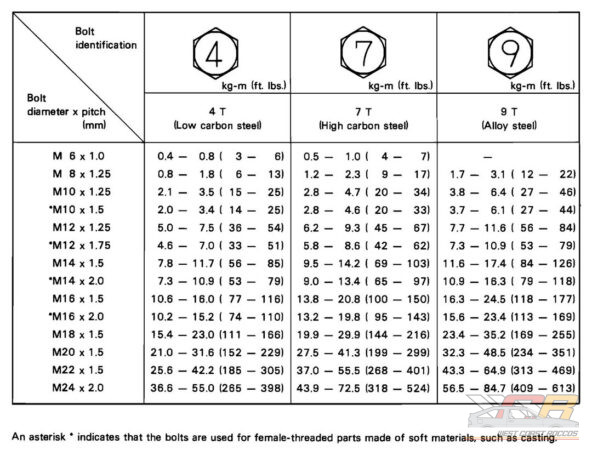

All Fastener Torque Specs:
If you can not find a torque spec for a nut or bolt. This handy VW Workshop Manual guide will help you determine how many ft lbs you need. If you need to convert it to nm, Use the calculator below that to conversions.
(Right Click Here Download or Open in a blank page to print)
Advanced Torque Converter
Production Build Dates, PR Codes, Color Codes
Sales Types, Engine, Transmission,
Serial Numbers & Information
- – Mk1 Scirocco Chassis VINs –
- – Mk2 Scirocco Chassis VINs –
- • Mk1 Scirocco Engines No. & Serial •
- • Mk2 Scirocco Engine No. & Serial •
- — Mk1 Sales Type – Engine & Transmissions —
- – Mk2 Sales Type – Engine & Transmission —
- · Mk1 Interior & Exterior Production Numbers ·
- · Mk2 Interior & Exterior Production Numbers ·
- ° Mk1 Extra Options / Extended Options °
- ° Mk2 Extra Options / Extended Options °
Scirocco Engine & Transmission Specifications:
Transmission & Shift Linkage Specs – Fluid & Torque
020 Transmission Information & Ratios
Fuel Specs – Testing Flow Rates
16v Idle Mixture Adjustment Procedures
8v Idle Mixture Adjustment Procedure
Scirocco Alignment Specifications
Air Conditioning Systems – R12 to R134a Retrofit Information
Scirocco Sunroof Manuals:
Mk1 Volkswagen Mk1 Sunroof Service Manual
Mk2 Volkswagen Mk1 Sunroof Service Manual – Coming Soon
Wheels & Suspension
Mk1, Mk2 Scirocco, and A1 Chassis Rear Beam Suspension Specs

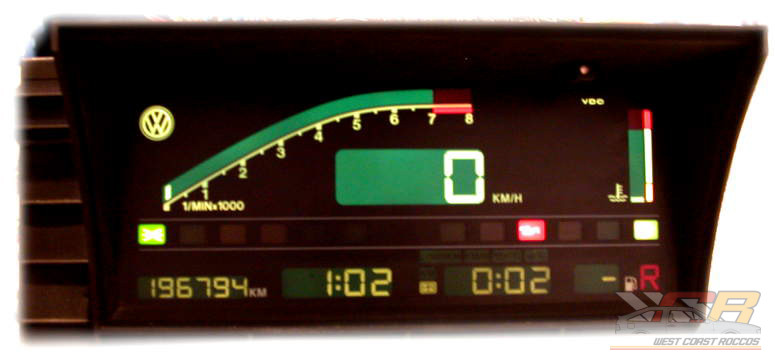

Gauge Clusters
Upshift Light Issues / Reverse Light Issues

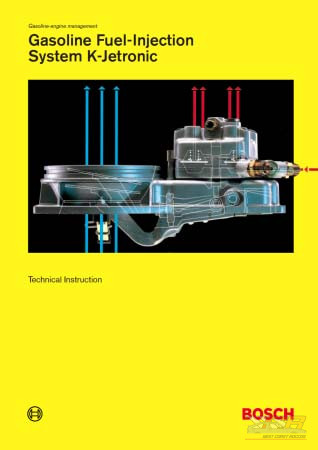

Bosch K-Jetronic Fuel Injection Manual (38pg)
Click photo to open / right click to download

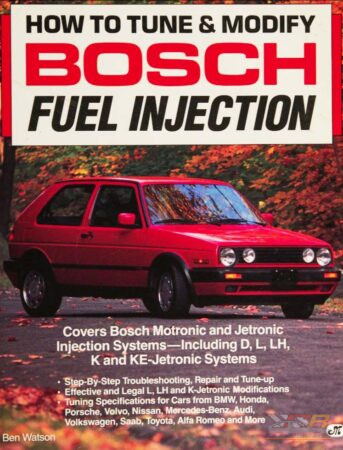

How to tune Bosch Fuel Injection
(PDF Searchable / Large File)
Click photo to open / right click to download
Scirocco 16v G60 50mm Intake Manifold Photos
How to use the Scirocco Tech Specs, Resources & Manual
Closely examine the diagrams to identify key components related to the problem. Pay attention to part numbers, connections, and any relevant specifications provided. These details are crucial for accurate diagnosis.
Refer to the technical specifications outlined in the manual. These specifications provide information on expected values for various components, such as electrical resistance, voltage, or pressure. Use specialized tools like multimeters or pressure gauges to measure these values accurately.
Compare your actual measurements to the specified values in the manual. Any significant deviations could indicate a fault or malfunction. Troubleshoot systematically by checking each component in the system until you identify the root cause of the issue.
Consult online resources and forums for additional guidance if needed. Volkswagen enthusiast communities and official forums often contain valuable insights and troubleshooting tips from experienced owners and technicians.
By leveraging technical diagrams and specifications effectively, you can methodically diagnose and potentially resolve issues with your VW Scirocco, saving time and money on unnecessary repairs.
Coolant Specs
The total cooling system capacity for 1974–1992 Volkswagen Sciroccos (both 8v and 16v engines) is approximately 6.5 liters (1.7 gallons), including the expansion tank and heater core.
Coolant Specifications & Details
- Factory Coolant Type: G11 (blue-green/teal, silicate-containing, phosphate-free formula).
- Modern Equivalents: G48 or compatible silicate-based coolants like Pentosin Pentofrost NF or Zerex G48. Avoid using modern OAT coolants like G12 without a complete system flush.
- Mixing Ratio: Use a 50/50 mix of concentrated coolant and distilled water to prevent mineral buildup and corrosion in the classic aluminum/iron block.
Filling Tips
- Bleeding Air: Set your cabin heater control to full hot (open valve) when refilling so coolant flows through the heater core and traps are avoided.
- Filling: Remove upper coolant hose. Fill coolant in upper radiator hose until hose and radiator are at the top. Then reconnect hose.
- Level Check: Run the engine until the radiator fan cycles on and off, then top off the expansion tank or radiator to the proper mark once cooled.
