Name: Scirocco Battery Terminal Kit - 1 Positive - 1 Negative
Brand: West Coast Roccos
SKU: Scirocco-Battery-Terminal-Kit
Availability: InStock

Description

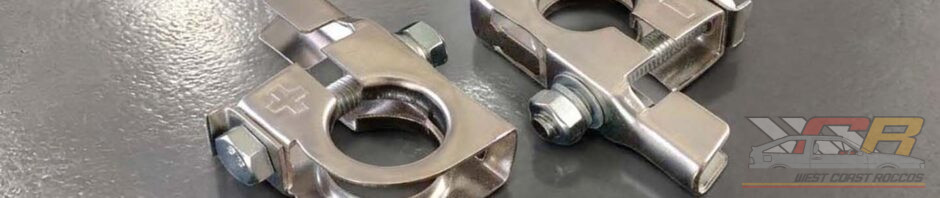

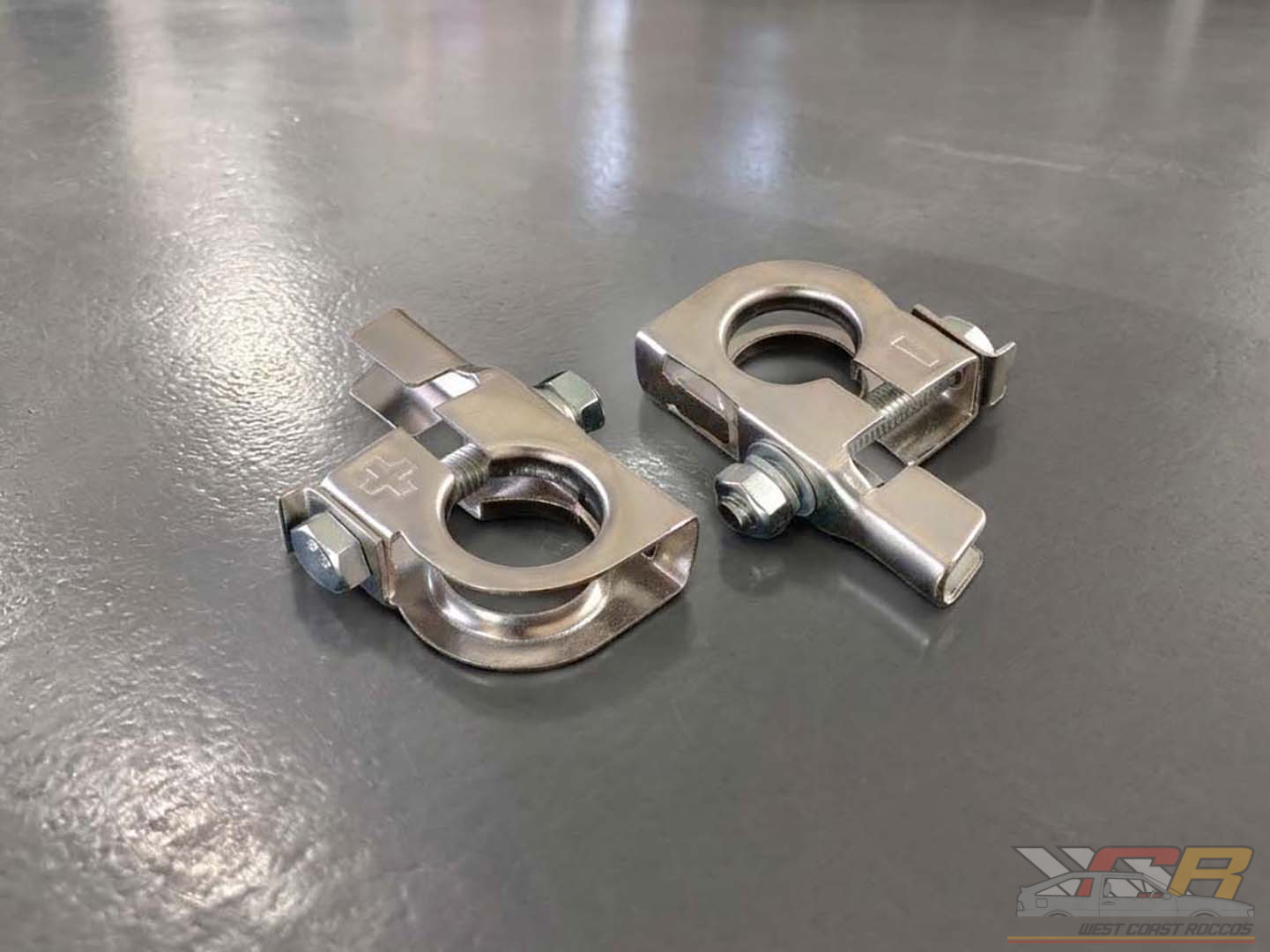

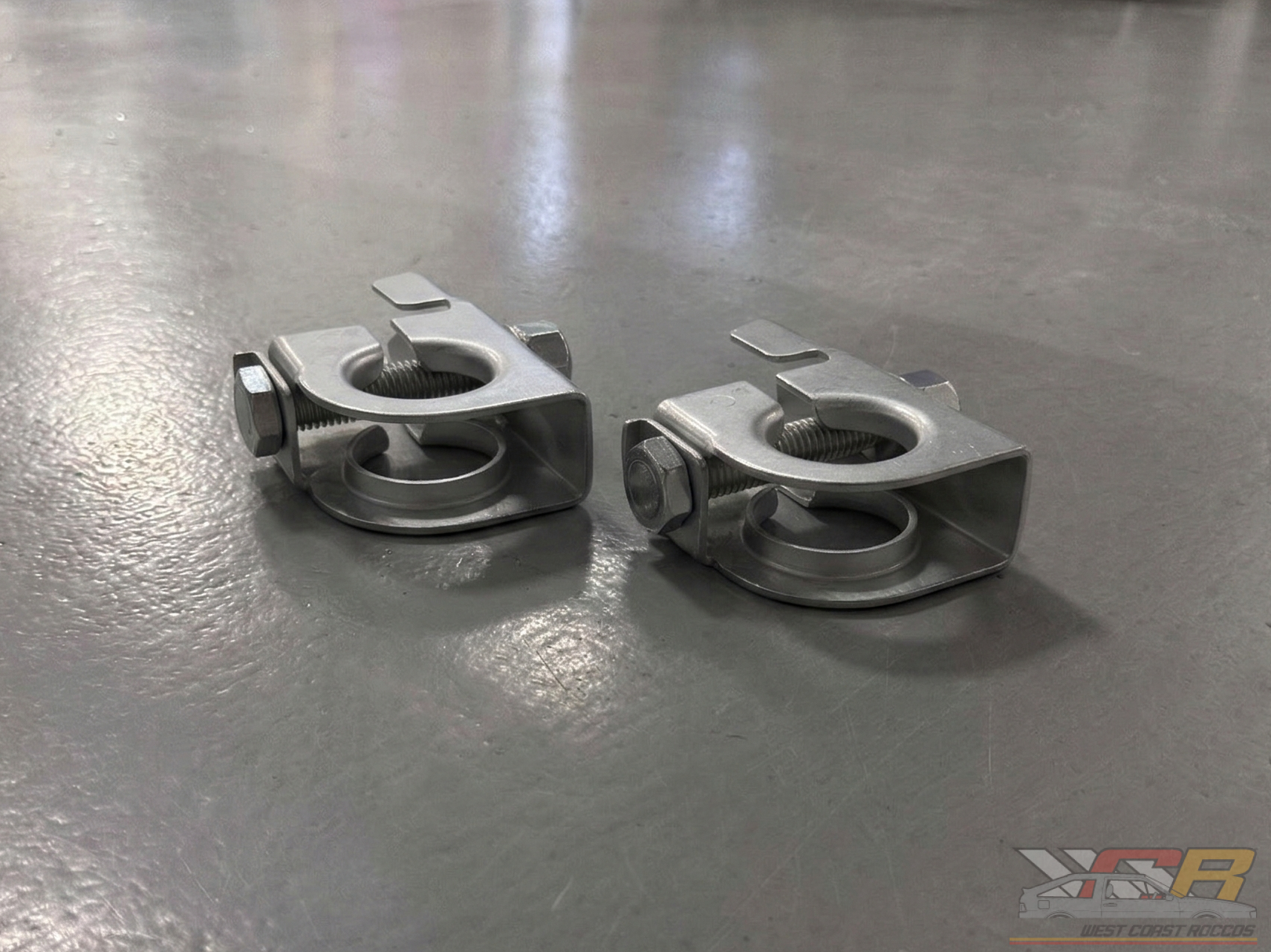

Scirocco Battery Terminal Kit

WCR’s Mk1 and Mk2 Scirocco Battery Terminal kit is the exact same terminals that VW used from the factory. Same dimensions and same vintage look. Also, these have the same auxiliary blade terminal on the side for accessory power or ground.

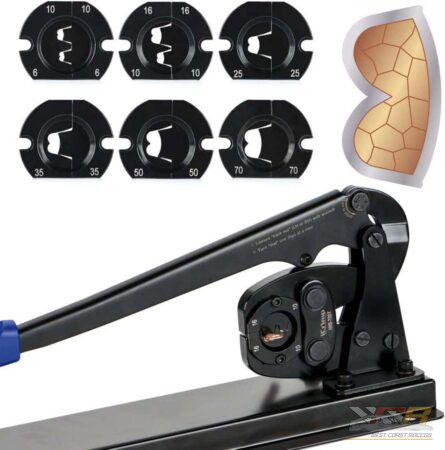

These have a open end barrel connection and require a B Type Crimper for 10 to 2/0 AWG wire. You can also use a vice to crimp in case you don’t have one. Although this may be true, it is much cleaner to use the proper tool.

Scirocco Battery Terminal Kit Specs:

One positive terminal
One negative terminal
For 10mm / 6 AWG power or ground wire
6.35 Blade Aux Terminal on each
M6x1.0mm thread for tightening terminal
17-18mm standard battery post terminal
55mm L x 44mm W x 15mm T
Comes with marine grade 3:1 shrink tubes for each crimping connection. w/ Adhesive inside shrink tube.

For Building Parts Numbers:

Power Cable To Starter
#1 – Mk1 / #7 Mk2
321 971 228 A / 321971228A
Negative Cable to Chassis & Trans
#2 Mk1 / #9 Mk2 8v
171 971 235 F / 171971235F
Negative Cable to Chassis & Trans
#9 Mk2 16v – 1986.5-1988
533 971 235 / 533971235

Mk1 #1 & #2

Mk2 8v / 16v – #7 & #9

The Scirocco Battery Terminal Kit (1 Positive, 1 Negative) is a specialized restoration part. Because were are dedicated, these are made to replicate the original factory terminals used by Volkswagen. Additionally, these terminals maintain the vintage look of classic Mk1 and Mk2 Sciroccos. Also, these provided modern reliability with zinc plated finish unlike the factory parts.

Product Details and Design

Factory Authentic: For one thing, having a generic terminalis an eye sore. These terminals feature the exact same dimensions and vintage aesthetics as the original factory-installed parts. For this purpose, they are perfect for restoration projects.
Accessory Power: Each terminal includes a 6.35mm auxiliary blade terminal on the side. More over, this is easier to connect accessory power or ground wires. However, you should use the bolt for higher amperage devices. For the most part, use good judgement when attaching power wires.
Open End Barrel: The kit uses an open-end barrel connection, which is best secured using a “B Type” crimper for 10 to 2/0 AWG wire.
Marine-Grade Protection: The kit comes with 3:1 marine-grade shrink tubes. For example, these feature internal adhesive to ensure a waterproof and corrosion-resistant seal after crimping.

Technical Specifications

Kit Contents: One positive and one negative terminal.
Wire Compatibility: Designed for 10mm / 6 AWG power or ground wire.
Dimensions: Approximately 55mm L x 44mm W x 15mm T.
Fitment: Fits standard 17-18mm battery post terminals.
Hardware: M6x1.0mm thread for tightening the terminal securely.

Vehicle Application and Build Parts

This kit is compatible with all Mk1 and Mk2 Scirocco models. It is ideal for builders recreating original wiring harnesses with the following part numbers:

Starter Power Cable: 321 971 228 A (All Mk1 & Mk2).
Negative Chassis Cable (8v): 171 971 235 F (All Mk1 & Mk2 8v).
Negative Chassis Cable (16v): 533 971 235 (Mk2 16v, 1986.5–1988).

The Scirocco Battery Terminal Kit is an essential upgrade for owners who want to combine modern electrical reliability with a strictly period-correct look.

Key Reasons to Choose This Kit

OEM-Correct Restoration: These terminals are designed to be the exact same dimensions and style that Volkswagen used originally, preserving your engine bay’s factory appearance. In essence, these will add that new factory look you have been looking for.
Enhanced Accessory Support: Each terminal features a 6.35mm auxiliary blade terminal. Even so, this allows for clean and easy connections for additional power or ground wires without cluttering the main post.
Superior Corrosion Resistance: The kit includes marine-grade 3:1 adhesive-lined shrink tubes that create a waterproof seal. After all, this is preventing the “green crust” corrosion that often plagues vintage VW electrical systems.
Broad Compatibility: As has been noted, This kit is designed to fit all Mk1 and Mk2 Scirocco models, including 8v and 16v variants.
Professional Grade Specs: These have high-quality M6x1.0mm tightening hardware. Another key point, these utilize a sturdy open-end barrel design. As a matter of fact, these terminals provide a much more secure connection than generic parts-store alternatives.
