Description

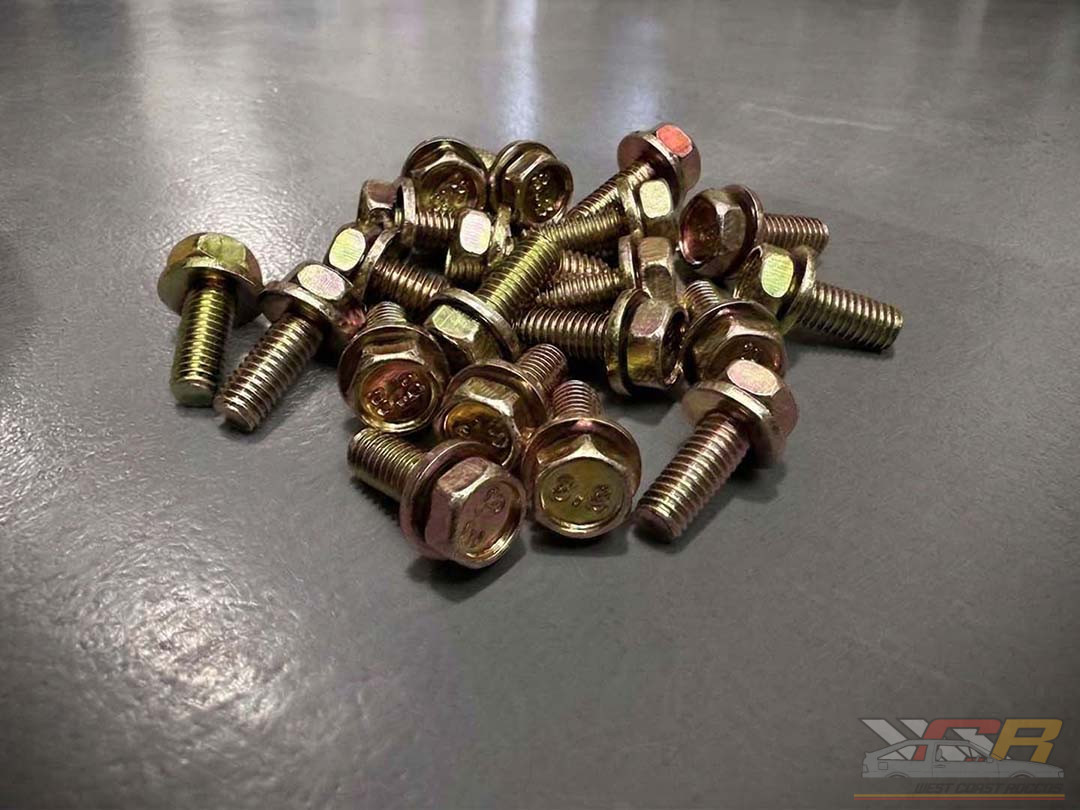

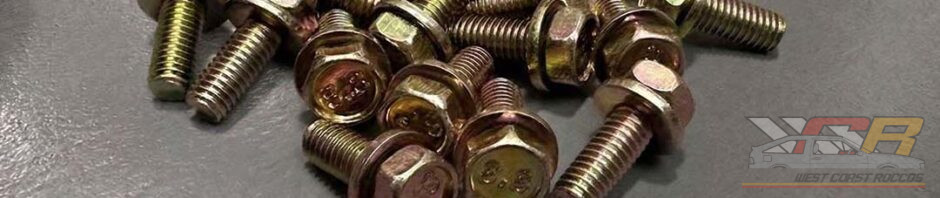

8v & 16v Oil Pan Bolt Kit
Our oil pan bolt kit for vehicles with windage trays. OEM style yellow chromate zinc coated for increased corrosion protection. Uses a slightly longer bolt. For MK1 , Mk2, 8v & 16v w/w windage trays / with OEM style oil pan baffles. Must be replaced after removed. Also use a tap to remove dirt, grim and any thread locker. Superseded to a serrated flange for better locking. Suggest using one small drop of blue loctite as well. Also, when installing a windage tray, put a thin coat of black RTV on either side of the tray gasket before installing.
Part No: N 900 084 01 / N90008401
M6 x 1.0 x 16mm
Grade: 8.8
Torque Spec: 20 Nm / 15 ft lb
Qty: 1 (Kit) = 20 Bolts
VW List Price Per bolt is $9.90 / $198.00 for 20 Bolts!
Our Price = Much less
The 8v & 16v Oil Pan Bolt Kit is an essential hardware set for Volkswagen Mk1 and Mk2 engines, specifically those equipped with windage trays and OEM-style baffles.
Performance and Protection
-
OEM-Style Coating: These bolts feature a yellow chromate zinc coating, which provides significantly increased protection against corrosion compared to standard hardware.
-
Enhanced Locking: The kit uses a superseded design with a serrated flange for superior locking capability. This is because, ensuring the pan remains securely fastened under vibration.
-
Windage Tray Compatibility: The bolts are slightly longer than standard oil pan bolts to accommodate the added thickness of a windage tray and gasket assembly.
Technical Details and Installation
-
Kit Quantity: 1 Kit = 20 Bolts (Enough for a full replacement).
-
Application: Fits Mk1 and Mk2 8-valve and 16-valve engines.
-
Part Reference: Supersedes and replaces Part No: N 900 084 01.
-
Installation Advice:
-
Always replace oil pan bolts after removal to ensure proper clamping force.
-
Use a tap to clean dirt, grime, and old thread locker from the block’s mounting holes. If you do not you may have issues. For example, the old loctite may cause additional torque, making for a improper tightening and will cause leaking.
-
Apply a small drop of blue Loctite for extra security.
-
Apply a thin coat of black RTV on both sides of the windage tray gasket during installation.
-
Value Proposition
While the Volkswagen list price per bolt is approximately $9.90 (totaling nearly $200 for a full set), this West Coast Roccos kit provides the complete set for a fraction of that cost.
