Description
VW 201 CV Flange Puller Tool: The Essential Service Tool
West Coast Roccos VW 201 CV Flange Puller Tool is made from hardened steel. It is also Yellow chromite Zinc coated so it will last a lifetime, maybe longer. These are for pulled the flanges off your 020 transmission to repair the leaky output shaft seal and green sleeve that always leak on these differentials.
* Notes:
- As this tool is used for multiple applications, it comes with two attachments.

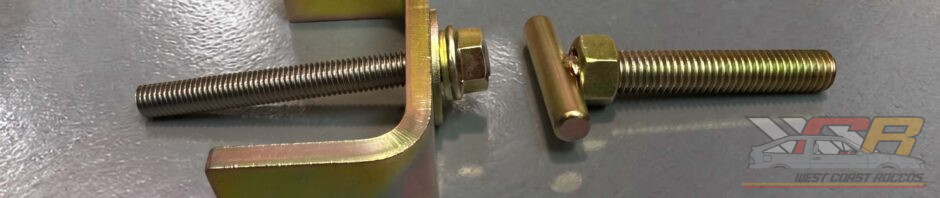

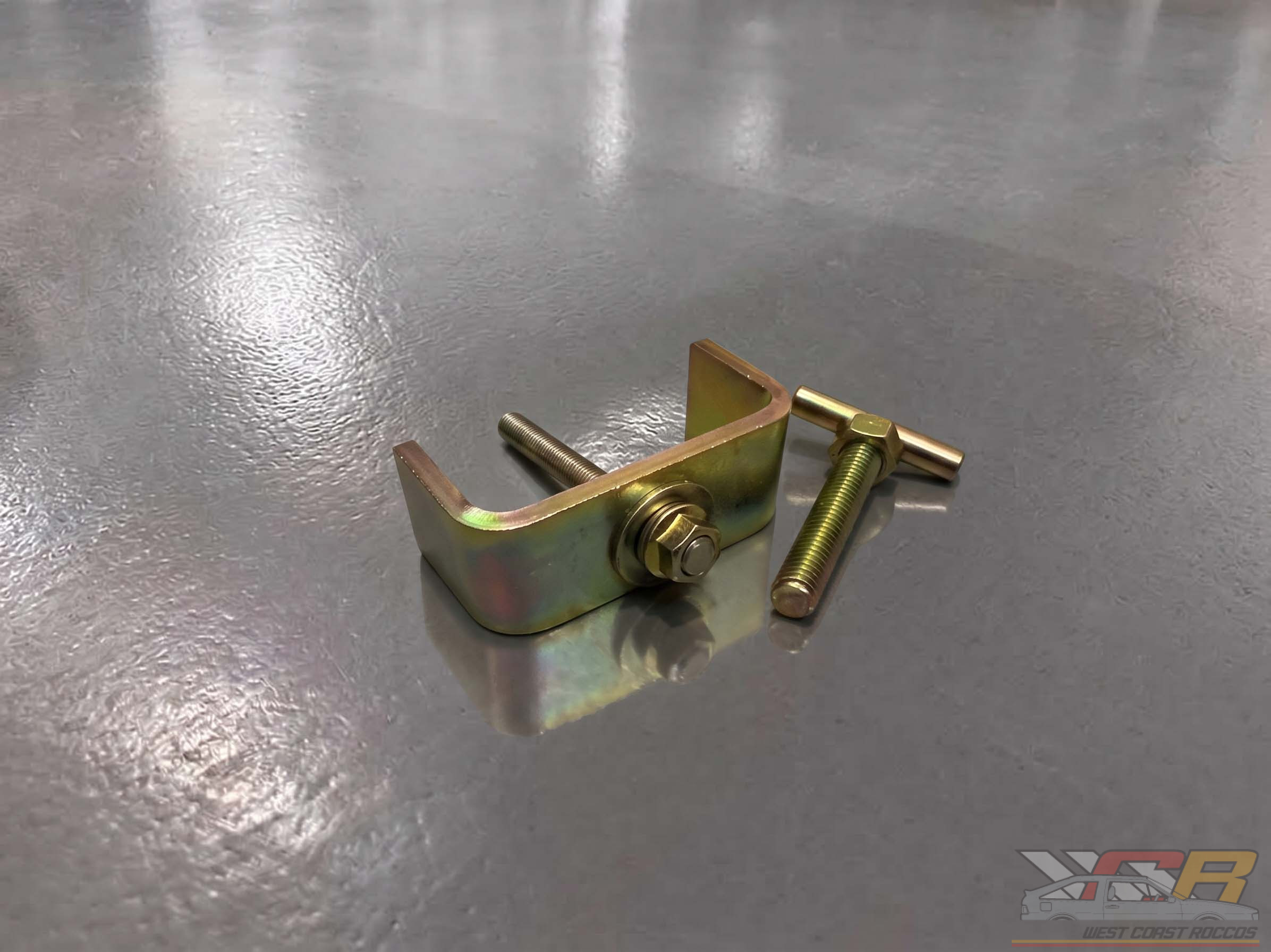

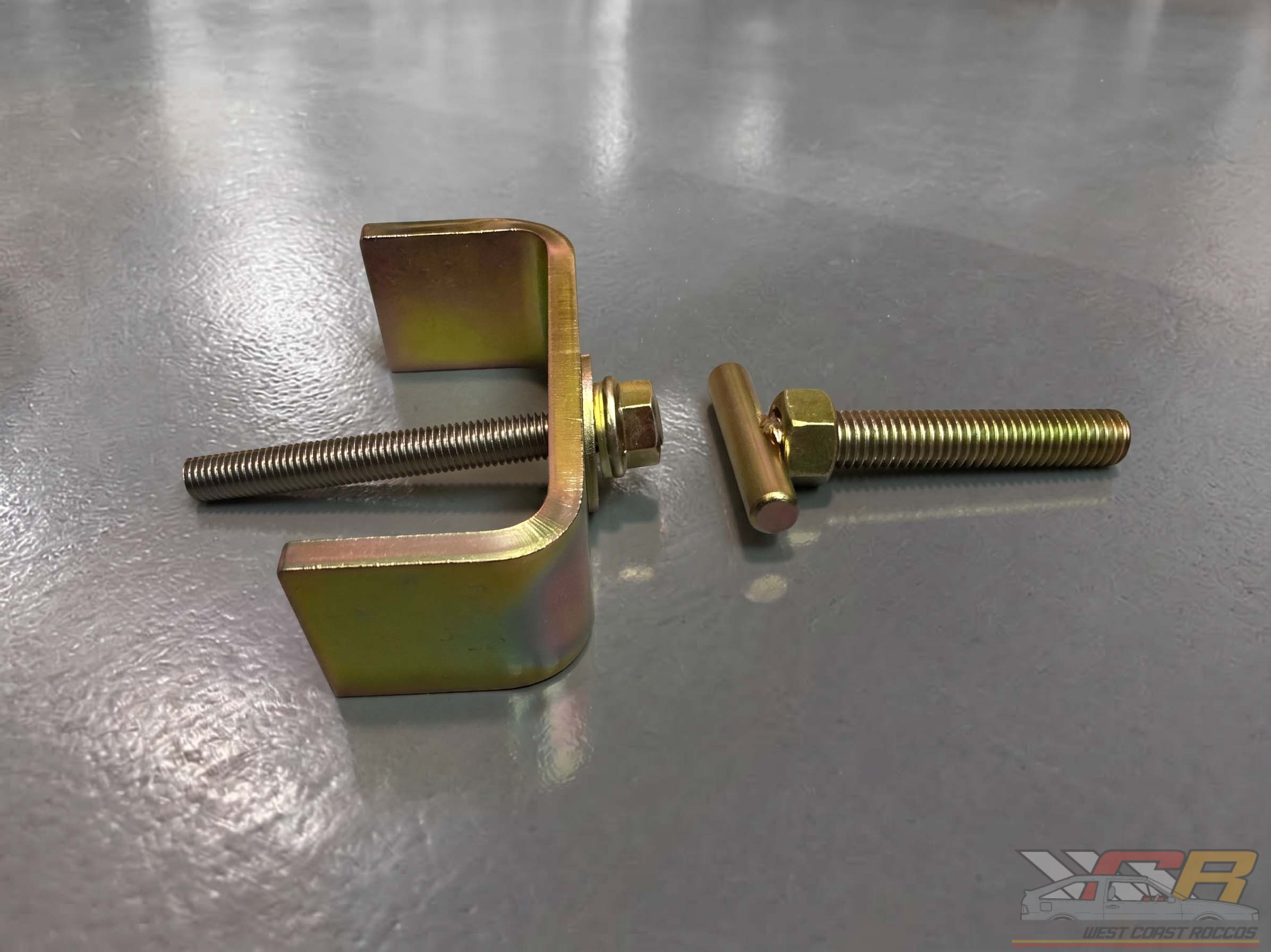

- A M10 x 1.5 x 100mm (4″) SS bolt and M10 nut and washer as shown in the photos and diagram below.
- It also comes with a threaded handle puller attachment for pulling Air Cooled Oil Pumps and other VW, Audi and Porsche applications.
- Thread the M10 SS threaded bar First, then attach the tool. Grease the washer. Then install the large washer first, then the small washer,. Finally grease the threads and nut and install.
- You must grease the threads and washers before each use. Additionally, clean the threads after you are finished with removal and installation.
- * Standard bearing grease will work just fine.
- For early 020 transmissions with 90mm flanges, you may need to insert a short bolt with a thick washer in two of the flange bolt threads, 180º apart.
- This will ensure that the puller does not slip off the edge.
- Requires spring clip pliers to remove flange, 45º or 90º spring clip pliers work better if you have them.
- * Pliers Not Included.
We highly suggest replacing these part went performing this repair.

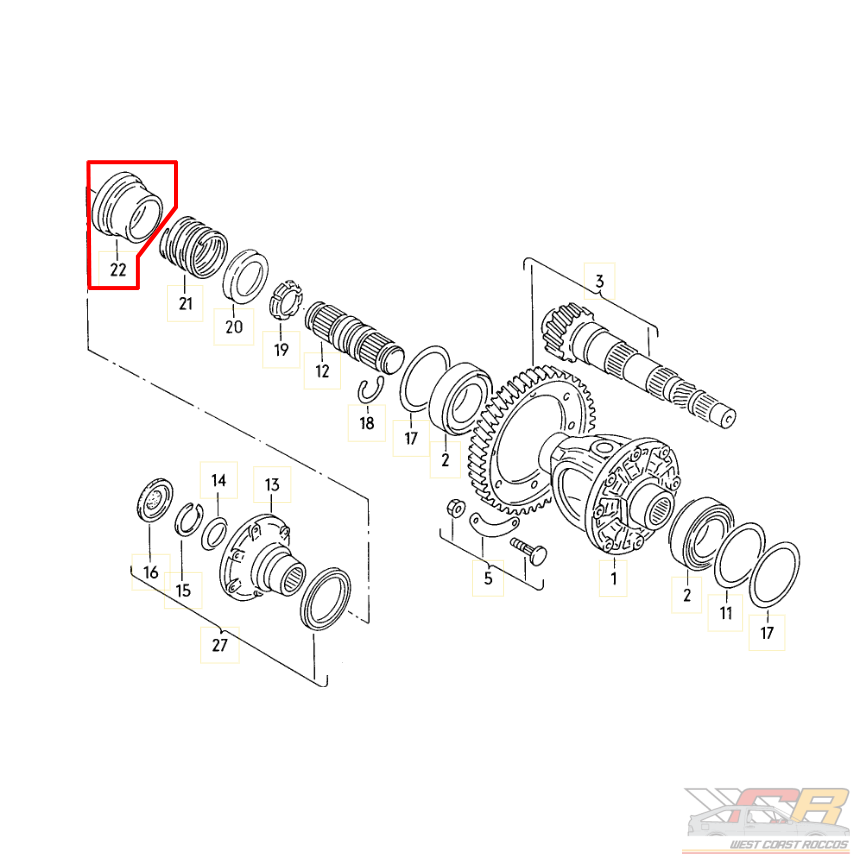

- VW 201 Tool – Needed to perform this repair
- Spring Clip – #15 – PN: 020 409 297 / 020409297
- Flange Seal – Not Numbered – PN: 020 498 085 G / 020498085G
- Green Sleeve – #22 – PN:020 301 192 A / 020301192A
West Coast Roccos brings you the VW 201 CV Flange Puller Tool. This tool is absolutely essential for serious VW mechanics and DIYers. We designed it for precision work on your Volkswagen. Stop struggling with tricky transmission service jobs. This puller makes the job fast and easy.
Why You Need This Tool
Firstly, you know the struggle of removing the CV joint drive flange. This part connects the axle to the transmission. Factory service manuals recommend using a specialized puller. Additionally, our VW 201 tool is that specialist. Furthermore, you can also use it on many other VW and Audi models that share this flange design.
- 90mm & 100mm Flanges
-
You pull the driveshaft flange cleanly.
-
The tool prevents damage to the flange, seal, or transmission.
-
You save time and money on replacement parts.
-
We make the tool with heavy-duty steel. It lasts a lifetime.
VW 201 Flange Puller Features
Secondly, the VW 201 CV Flange Puller mimics the original factory tool. It ensures perfect fitment and operation. You bolt the puller directly onto the flange. Then, is will create a straight, even pull.
Forget about using clumsy pry bars or hammers. For one thing, that method will risk expensive damage to your differential. Our puller applies controlled, gentle force. Mechanics who perform transmission repairs frequently love this tool. This is because It dramatically speeds up the removal process. Get the job done right the first time.
Perfect Fit for Sciroccos DIY People
Thirdly, this tool works perfectly on your Mk1 and Mk2 Scirocco. It suits these classic models with the specific flange design. For example, if you check your service manual for tool reference T20181, VW201 or 201. If you see those numbers, this puller is for you. This essential piece also handles the flanges on many other VW Group vehicles.
We know you demand quality for your Volkswagen. For this purpose, West Coast Roccos delivers only the best specialty tools. The VW 201 tool is a must-have for your toolbox. It guarantees professional results every time.
Invest in Efficiency
In conclusion, Stop wasting time. Also, you don’t need to spend over $350+ dollars for the Genuine Snap-On / VW tool Above all, you need to Start pulling flanges like a pro-mofo. Order your VW 201 CV Flange Puller today. This small investment pays for itself quickly. Get the reliability and performance you expect from West Coast Roccos. We help you keep your Scirocco running strong.
Ready to simplify your transmission work? Click Add to Cart now!
